Suction cup and vacuum pump

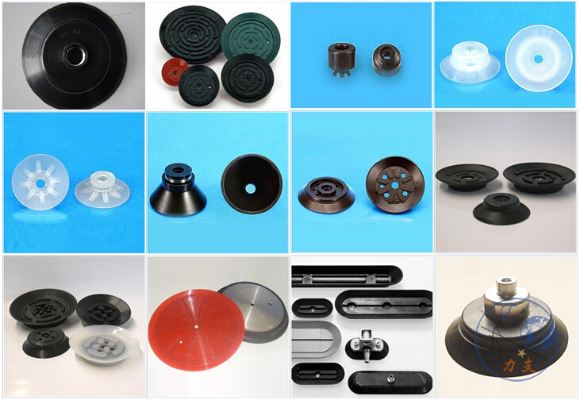

Suction cup and vacuum pump:Advanced cup designs incorporate multi-stage sealing lips that progressively engage surfaces, compensating for minor irregularities up to 0.5mm while maintaining 90% vacuum efficiency. Bellows-type cups with 3-5 convolutions provide 20-30mm vertical compliance for handling curved or uneven workpieces. Vacuum generators now integrate smart sensors monitoring cup seal integrity in real-time, with piezoelectric vacuum switches detecting pressure changes within ±1kPa accuracy to prevent part drops. Energy-efficient designs utilize pulsed vacuum technology, reducing air consumption by 60% compared to continuous flow systems while maintaining holding forces exceeding 200N per square centimeter of cup area.

Material science innovations have yielded hybrid cups with embedded conductive fibers for static dissipation during electronics handling, while FDA-approved silicone versions dominate food and pharmaceutical applications. In automotive assembly lines, specialized cups withstand 150°C paint oven temperatures while maintaining 0.6g/mm² holding power. The latest vacuum pumps incorporate variable frequency drives that dynamically adjust motor speed based on load requirements, cutting energy use by 35% while providing consistent 0.1-second response times across 10,000+ daily cycles.

These systems excel in glass handling applications, where electrostatic-activated cups develop initial adhesion before vacuum engagement, preventing Newton's rings in optical grade glass. For porous materials like corrugated cardboard, multi-zone cups create isolated vacuum chambers that maintain grip despite minor air leakage. Robotic end-effectors now combine arrays of 50-100 micro-cups (10-15mm diameter) with individual vacuum control, enabling conformal gripping of complex geometries. In semiconductor fabrication, ultra-clean pumps with 0.01μm filtration maintain Class 100 cleanroom standards while handling wafer carriers.

Emerging applications include adaptive grippers using vacuum jamming technology - where granular material inside flexible membranes transitions between solid and fluid states under vacuum control. Medical robotics employ miniature cup arrays (3-5mm diameter) with servo-controlled vacuum levels for tissue manipulation during minimally invasive surgery. The integration of IoT-enabled diagnostics allows predictive maintenance by analyzing pump performance trends and cup wear patterns, reducing unplanned downtime by 40%. As Industry 4.0 advances, these systems continue evolving with self-learning algorithms that optimize vacuum parameters based on surface characteristics and motion profiles.
