Non-powered suction crane

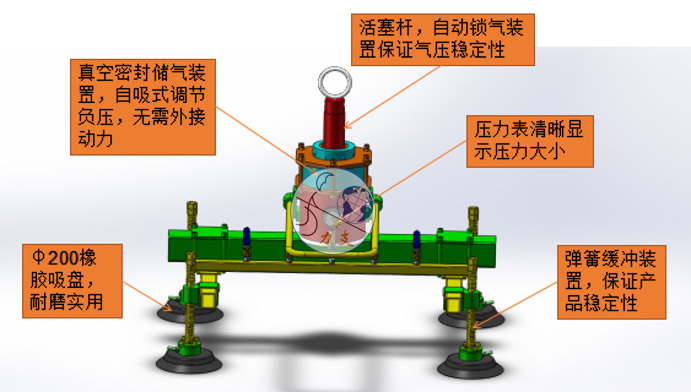

• Modular design vacuum crane with a piston system, non-powered control
• Adjusts the vacuum on/off through the lifting/lowering motion of the chain hoist
• Aluminum main beam with integrated vacuum diverter (load up to 750Kg)
• Battery alarm device has battery detection function and issues an alarm when vacuum level drops
• Vacuum suction cups are easy to adjust

• Soft and safe vacuum handling
• No need for additional power supply, flexible application
• Quick installation and operation
• Saves operating costs



Product display:

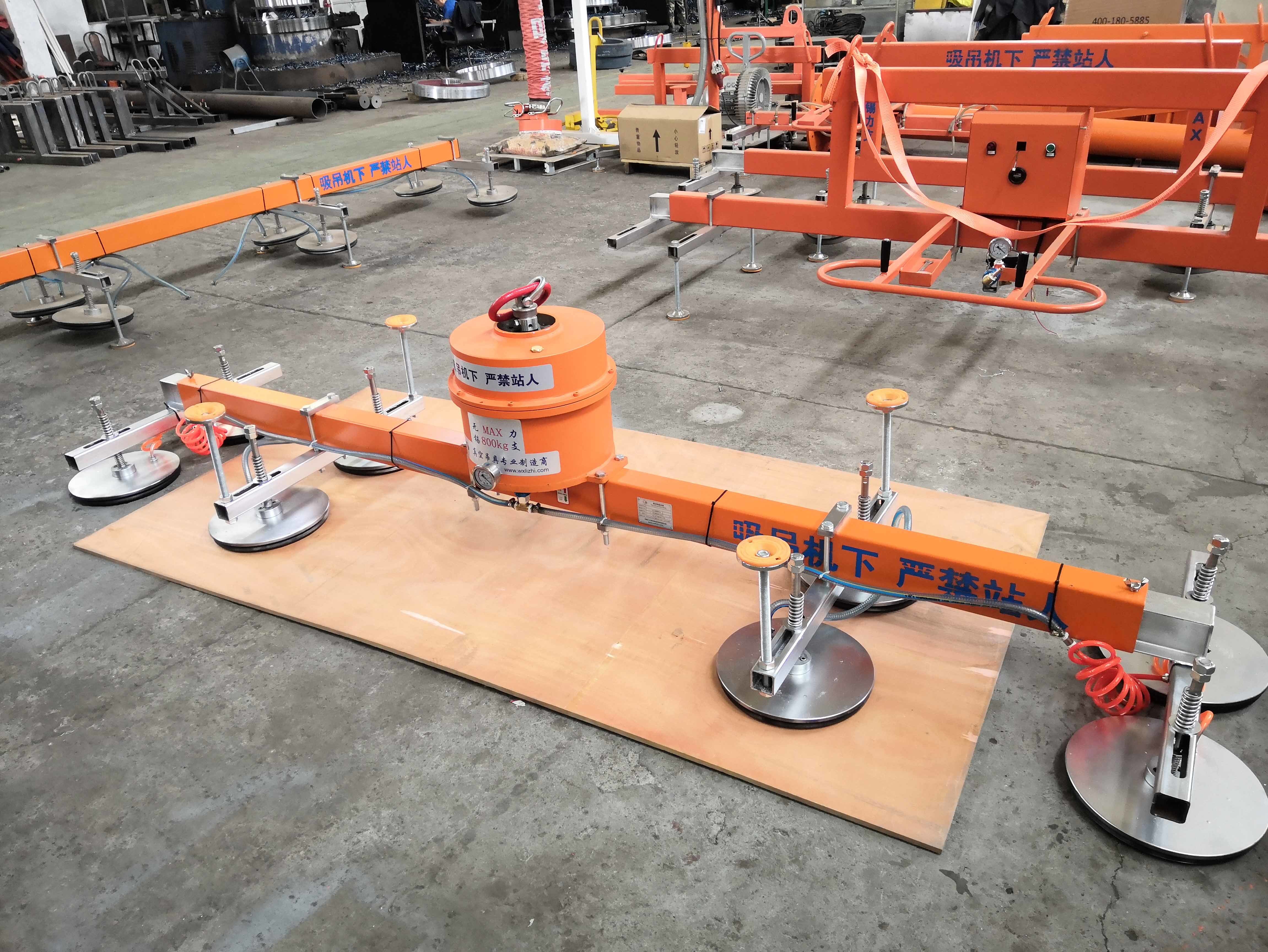

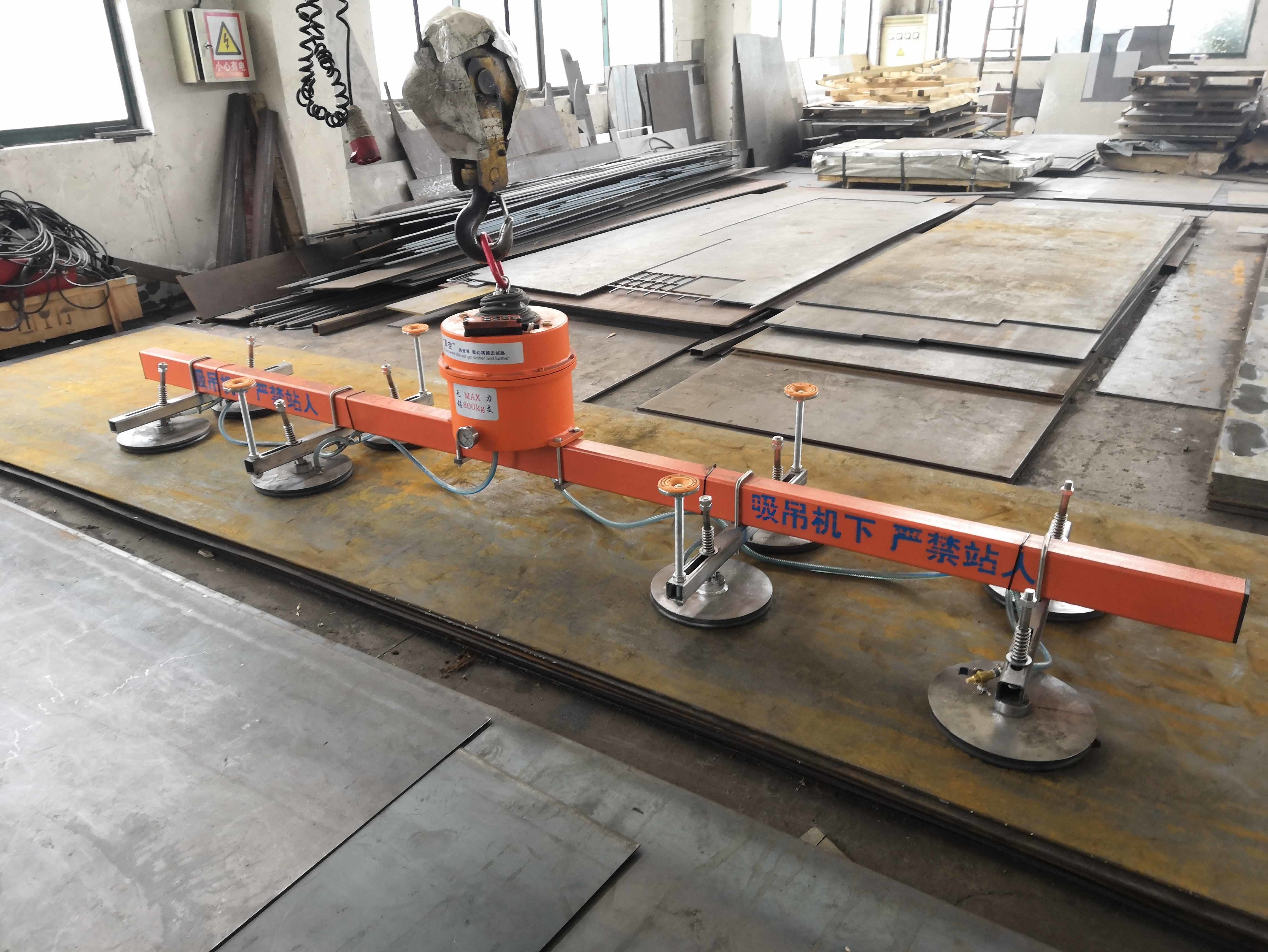

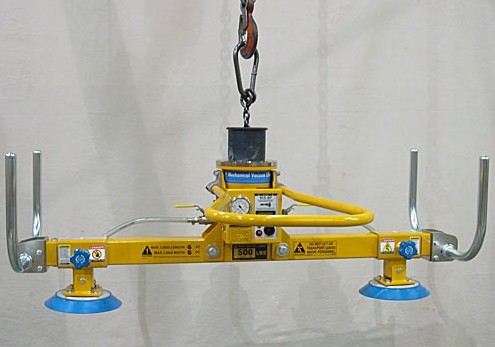

•KKP-500ZX-1 size 450×450×500 (mm)   • 1 pieceSuction cup, load 500kg   • Suitable for handling glass and stainless steel plates of size 1.2*1.2 meters, etc.   • Can be matched with column cantilever crane		•KKP-500ZX-2 size 1200×450×500 (mm)   • 2 piecesSuction cup, load 500kg   •Suitable for handling glass and stainless steel plates of size 1.5*1.2 meters, etc.   •Can be matched with suction cups and lifting tools of different materials		•KKP-1200ZX-6 size 3000×500×800 (mm)   •6 suction cups, suction cup load 1200kg   •Suitable for handling steel plates between sizes 3600*500 (mm)   •Can be matched with column cantilever crane

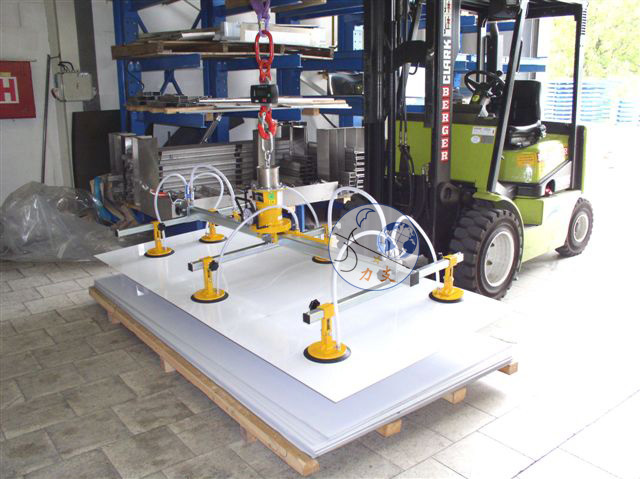

•KKP-800ZX-2 Size 2500×1200×800 (mm)   •4 suction cups, load 800kg   •Suitable for handling steel plates between sizes 2*2.1 (m)   •Can be matched with column cantilever crane		•KKP-500PX-6 Size 1500×750×500 (mm)   •6 suction cups, load 500kg   •Suitable for handling tiles and marble between sizes 1.2*2 (m)   •Can be matched with forks		•KKP-250PX-2 Size 850×750×500 (mm)   • 2suction cups, load 200kg   •Suitable for handling hollow glass between sizes 1.2*1.2 (m)   •Can be designed in a small trolley form

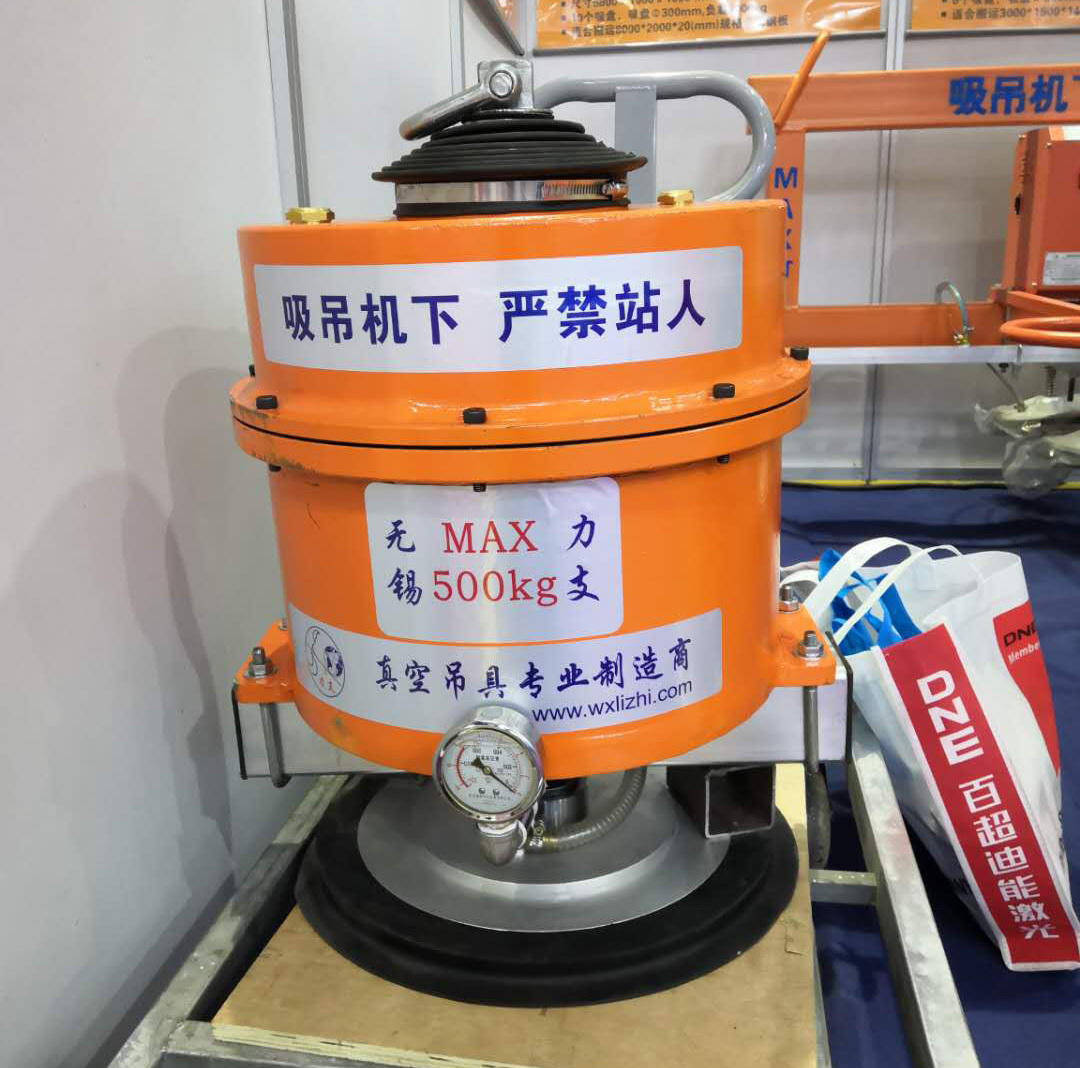

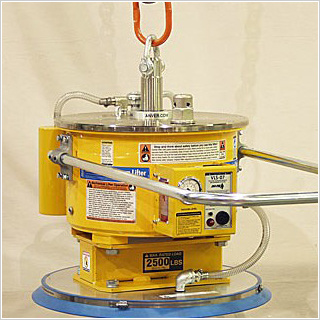

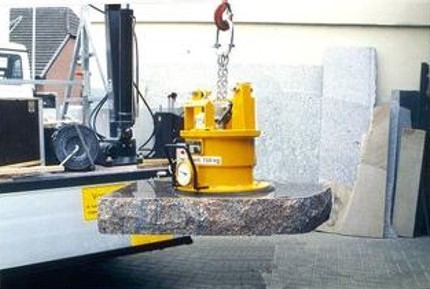

•KKP-500ZX-1 size 850×450×450 (mm)   • 1 pieceSuction cup 420*420mm, load 500kg   •Suitable for handling steel plates between sizes 3*2 (m)   •Can be matched with column cantilever crane		•KKP-500ZX-1Size 500×450×450 (mm)   •1 suction cup, load 2000kg   •Suitable for handling marble between sizes 1.2*1.2 (m)   •Can be matched with column cantilever crane		•KKP-500ZX-1 size 450×450×500 (mm)   • 1 pieceSuction cup, load 500kg   • Suitable for handling glass and stainless steel plates of size 1.2*1.2 meters, etc.   • Can be matched with column cantilever crane

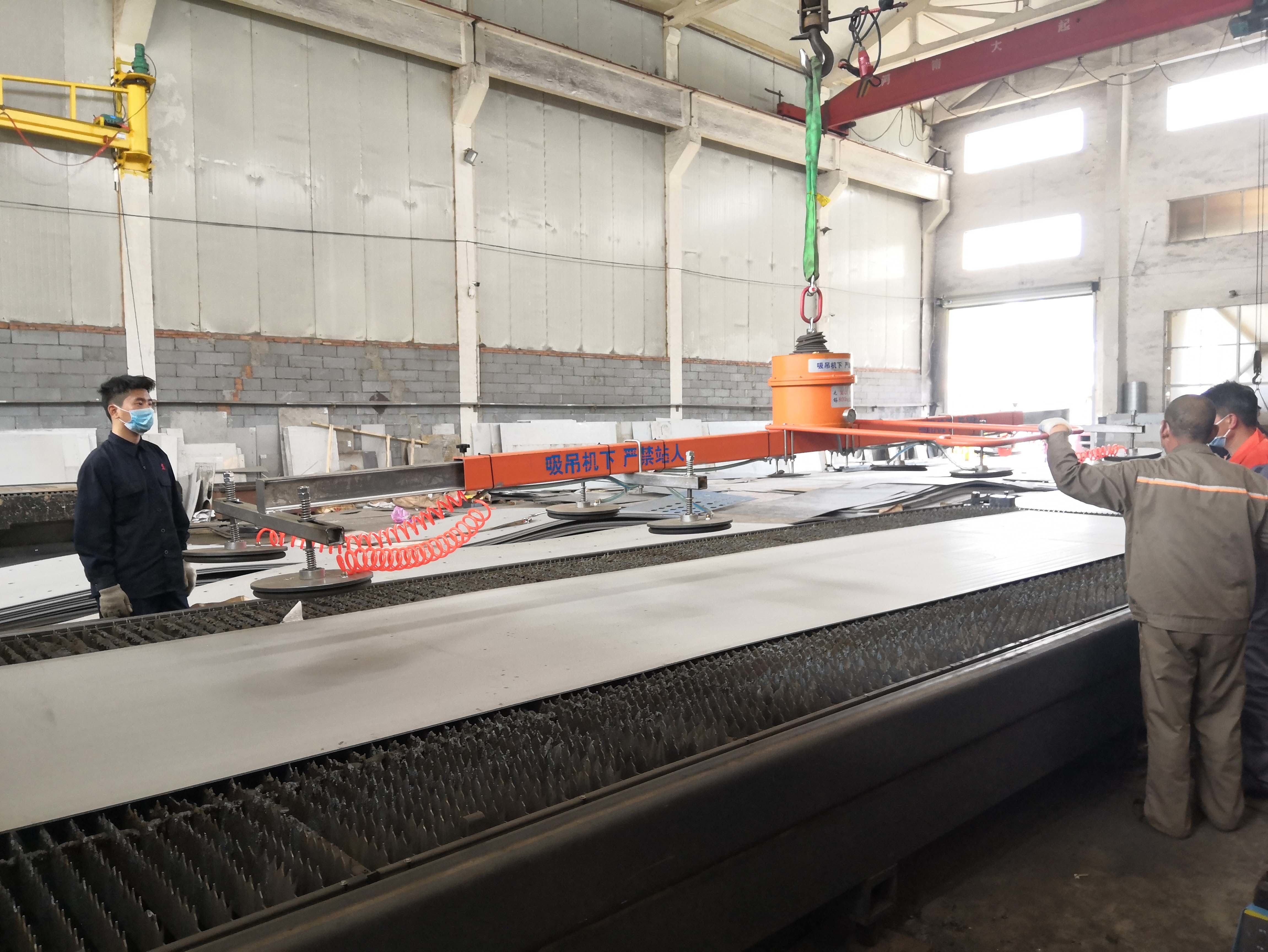

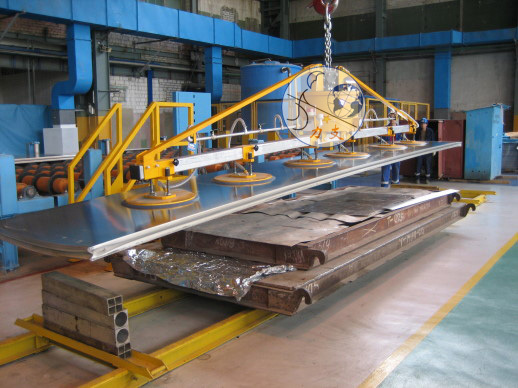

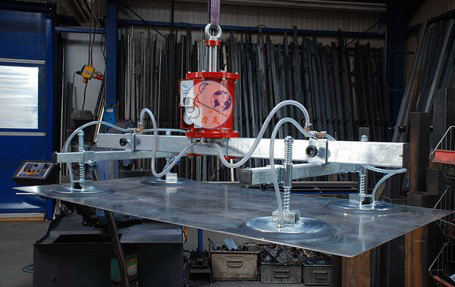

•KKP-800ZX-8 size 4000×800×800 (mm)   •8piecesSuction cup 320*320mm, load 800kg   •Suitable for handling steel plates between sizes 6*2 (m)   •Can be matched with column cantilever crane		•KKP-1000ZX-1Size 5000×800×800 (mm)   •8 piecesSuction cup 320*320, load 1000kg   •Suitable for handling steel plates between sizes 6*2 (m)   •Can be matched with column cantilever crane		•KKP-1200ZX-1 size 8000×1200×1000mm   • 8 piecesSuction cup, load 1200kg   • Suitable for handling stainless steel plates of size 10*2.2 meters, etc.   • Can be matched with column cantilever crane

Equipment specifications:

Non-powered suction crane:These cranes excel in environments where power sources are unavailable or impractical, such as outdoor construction sites handling large-format tiles or emergency glass replacement operations. The marine industry utilizes corrosion-resistant aluminum models with saltwater-tolerant seals for shipboard material transfers. In art conservation, non-marking silicone cups with micro-textured surfaces safely relocate delicate artifacts without surface contact marks. Modern designs incorporate lightweight composite arms that reduce operator fatigue while maintaining 2:1 safety factors on rated loads.

The latest advancements include intelligent suction monitoring through mechanical pressure gauges with instant-release triggers, and modular cup arrays that can be reconfigured for odd-shaped objects. Compared to powered alternatives, these systems offer significant advantages in maintenance simplicity - with no electrical components to fail and only periodic seal replacement required after approximately 10,000 cycles. Their silent operation makes them ideal for noise-sensitive environments like hospitals or theaters during set construction.
